LED/LCD Display Fixed Wall Mount

AV415-XL

product

Behind your prized LED/LCD display, you need a Great Support

Designed for all discerning owners of their prized flat LED and LCDs. ABtUS Universal LED/LCD Fixed Wall Mount AV415-XL supports any 51”-65” flat panels. Its Ultra sleek design provides the ultimate wall mounting solution that is very safe and discreet, keeping the panel 1.25” (32mm) away from the wall.

Fast and easy installation Fixed Mount
Slim design only 32mm from the wall
Sliding lateral on-wall adjustment
Includes mounting hardware kit
Locking bars for security
Universal to wide range of LED/LCD display

Expand All | Collapse All

Datasheets

Back to top

Manual Guide

Back to top

High Resolution Image

Back to top
image High Resolution Image 1
image High Resolution Image 2

AV415-XL
LED/LCD Display Fixed Wall Mount

Behind your prized LED/LCD display, you need a Great Support

Designed for all discerning owners of their prized flat LED and LCDs. ABtUS Universal LED/LCD Fixed Wall Mount AV415-XL supports any 51”-65” flat panels. Its Ultra sleek design provides the ultimate wall mounting solution that is very safe and discreet, keeping the panel 1.25” (32mm) away from the wall.
Features

Fast and easy installation Fixed Mount
Slim design only 32mm from the wall
Sliding lateral on-wall adjustment
Includes mounting hardware kit
Locking bars for security
Universal to wide range of LED/LCD display
Download

UM_AV415-XL.pdf


  • High Resolution Image 1

  • High Resolution Image 2
Technical Specification
DISTANCE FROM WALL

32mm (1.25")
LOAD CAPACITY

74kg (134 lbs)
COLOR OPTION

Silver
PLASMA SIZE

Suitable for 51” to 65”
WALL PLATE DIMENSION

1145mm (45.1”) x 220mm (8.7”)
LENGTH OF HOOK

558.8mm (22”)

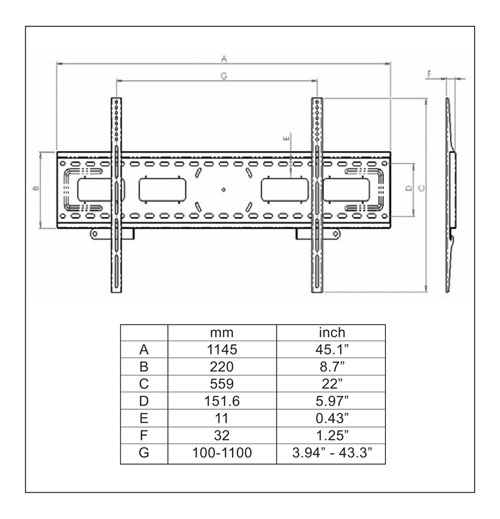

Diagram
