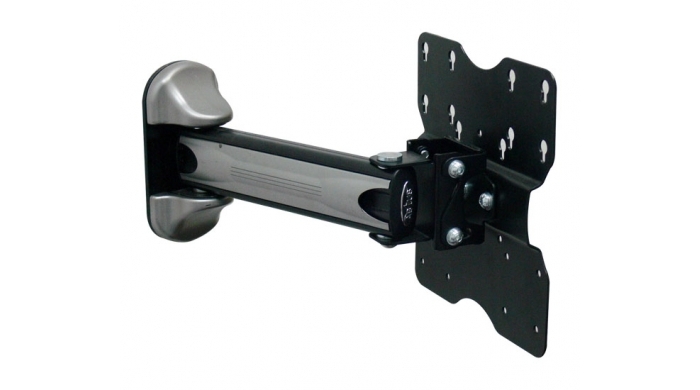

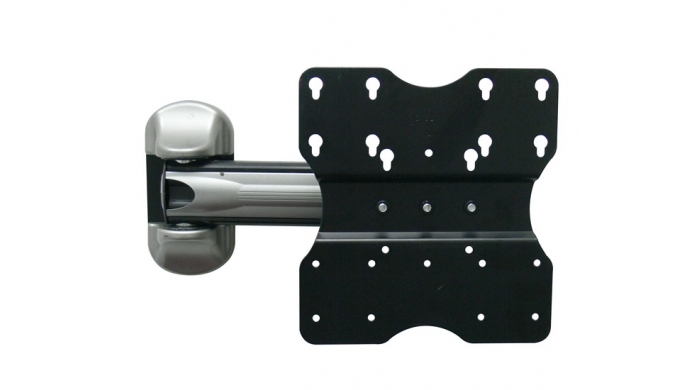

LED/LCD Display Single Arm Cantilever Mount

AV508-S

This single arm cantilever mount is designed for narrow or congested space such as corner or small room. Its arm allows all angle swing for total flexibility for the display mounting.

Fast and easy installation
Single arm provides 180 degrees viewing angle
Includes mounting hardware kit
Integrated cable management
Locking bars for security
VESA compliant 75 x 75, 100 x 100, 100 x 200, 200 x 200

LED/LCD SIZE	:	Suitable for 23” to 37”
GROSS DIMENSION	:	386mm (15.2") x 250mm (9.8") x 116mm (4.5")
ARM SWIVEL	:	180 degrees
TILT ANGLE	:	-5/+15 degrees
DISTANCE FROM WALL	:	116mm (4.5")
GROSS WEIGHT	:	4kg (8.8 lbs)
LOAD CAPACITY	:	36kg (80 lbs)
COLOR OPTION	:	Black

Expand All | Collapse All

Datasheets

Manual Guide

UM_AV508-S.pdf

High Resolution Image

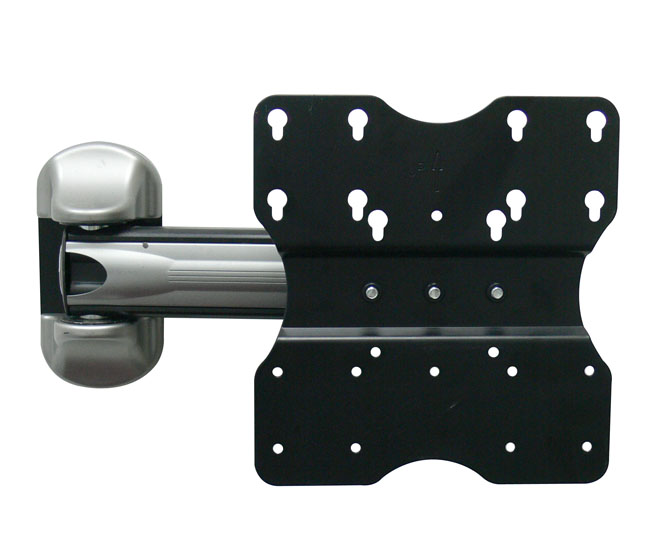

High Resolution Image 1

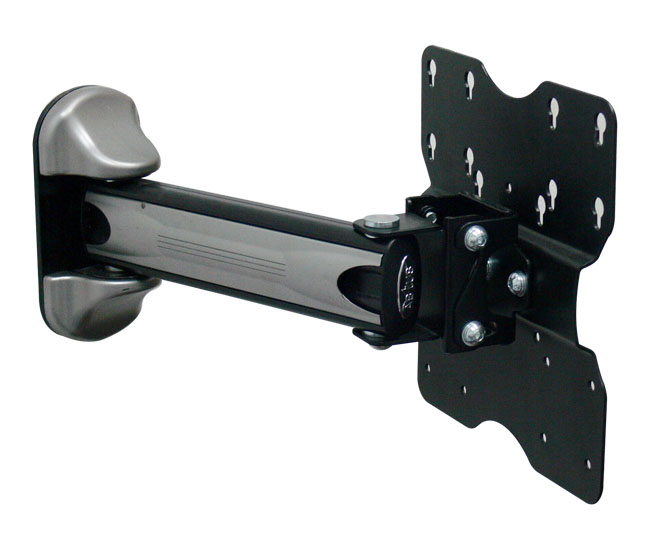

High Resolution Image 2

AV508-S
LED/LCD Display Single Arm Cantilever Mount

This single arm cantilever mount is designed for narrow or congested space such as corner or small room. Its arm allows all angle swing for total flexibility for the display mounting.

Features

Technical Spec

LED/LCD SIZE	:	Suitable for 23” to 37”
GROSS DIMENSION	:	386mm (15.2") x 250mm (9.8") x 116mm (4.5")
ARM SWIVEL	:	180 degrees
TILT ANGLE	:	-5/+15 degrees
DISTANCE FROM WALL	:	116mm (4.5")
GROSS WEIGHT	:	4kg (8.8 lbs)
LOAD CAPACITY	:	36kg (80 lbs)
COLOR OPTION	:	Black

Download

Software:

Manual Guide: UM_AV508-S.pdf

Datasheets:

RS-232 Command Codes:

RS-232 Command Codes (Docklight file):

Brochure:

Other download:

High Image:

High Resolution Image 1
High Resolution Image 2

Technical Specification

GROSS WEIGHT	4kg (8.8 lbs)
DISTANCE FROM WALL	116mm (4.5")
LOAD CAPACITY	36kg (80 lbs)
COLOR OPTION	Black
TILTING ANGLE	-5/+15 degrees
PLASMA SIZE	Suitable for 23” to 37”
GROSS DIMENSION	386mm (15.2") x 250mm (9.8") x 116mm (4.5")
ARM SWIVEL	180 degrees

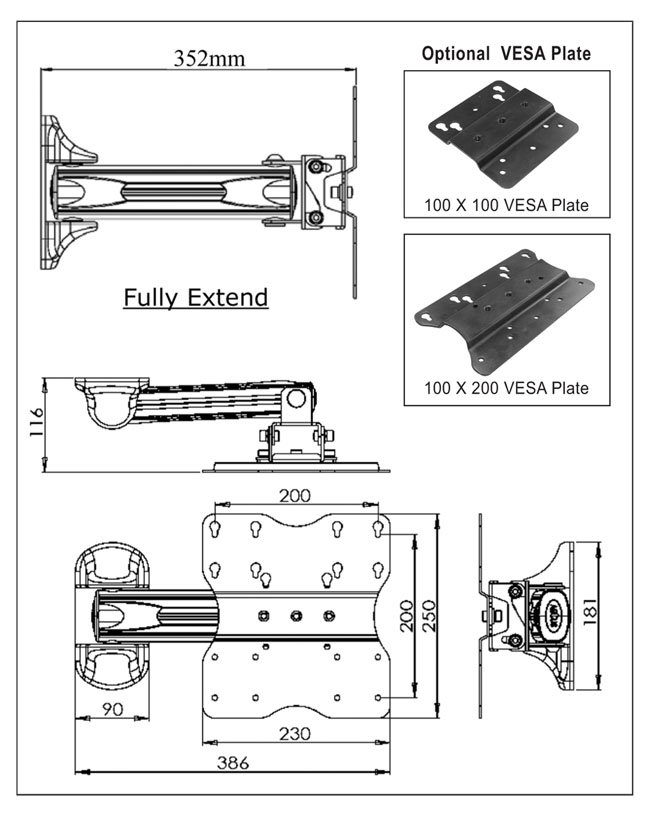

Diagram
