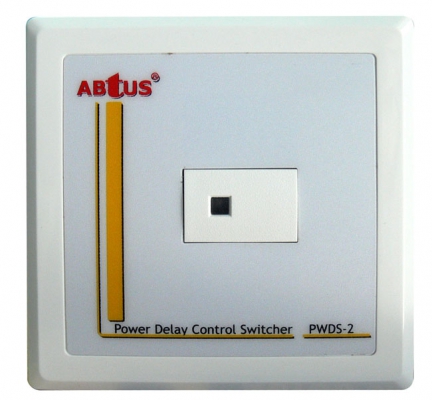

Power Delay Control Switcher

PWDS-2

product

In a Multimedia class room setup, integrated with a projector, media speaker, AV player and motorize screen (*with AVS-1200C/V2, AVS-1200S/V2 and AVS-SCR8V2). The PWDS-2 acts as a main AV power control switcher with delay for these equipments. Hence, at the end of the class or day all the “end user” needs, is just switching off this main switch (*PWDS-2) and it will trigger the central controller (AVS-1200C/V2) to turn all the rest of AV equipments to standby example: AV Switcher (*AVS-1200S/V2), the projectors and retract the screen to home position. By leaving a delay time till all equipments are confirmed cool down and in standby model, the main AV supply to all these equipments will then turn off after x number of delay time. Hence pro-long and prevent damage to any AV equipments, screen or projector as well as saving energy if the main AV is cut off immediately or leave ON continuously.

.

CONTROL : Hard Button
I/O :

Port 2 x 2 pin 5.0mm connector (2 x relay On/Off)

1 x 2pin 3.8mm terminal block (12 VDC Power supply input)

1 x 2pin 3.8mm terminal block (12 VDC Power supply output)

1 x 2pin 3.8mm terminal block (External trigger off)

POWER RELAY : 2
RELAY CURRENT RATING : Max Load 10A/277 VAC , Fuse Rating: 5A
VARIABLE TIMING : 120, 150, 180, 210 sec
HOUSING  : ABS
DIMENSIONS : 89 x 89 x 45 mm
WEIGHT : 120g
POWER SOURCE : 12V DC
ACCESSORY : 1 x 12C DC Power Adaptor
