HDBaseT Extender (HDMI / Display Port / VGA)

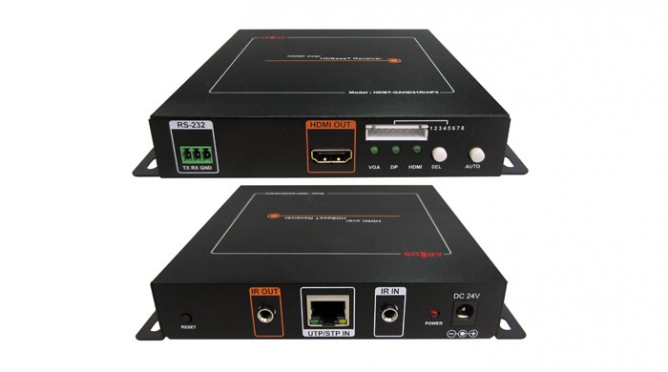

HDBT-GAHD31R/AP3
The HDBT-GAHD31T/AP3 & HDBT-GAHD31R/AP3 is a pair of automatic switcher that switches and scales input from multiple
formats to output onto a display via HDBaseT.
It is able to automatically detect and switch input signals from HDMI, Display Port and VGA based on manual selection or last connected input. The signal will be automatically scaled and passed through a single CAT-5 cable using HDBaseT technology to the display (or receiver) up to 70m.
● Automatic input detection &s election
(Based on manual selection or last connected input)
● Supports up to 4K 2K resolutions
● Scaled video output to 1080p @ 60Hz
● Extends HDMI / VGA up to 100m
● Supports bi-directional IR and RS-232
● Support POC (power over cable)
| Input | : | 1 × RJ45 |
| Output | : | 1 × HDMI |
| Control | : | Front Panel & 8-pin external control |
| HDMI Compliance | : | Yes |
| HDCP Compliance | : | HDMI Deep color, Full 3D & 4K 2K |
| Scaled Video Support | : | 1080p @ 60Hz 36-bit color |
| Max Video Support | : | 1920 × 1200, 4K 2K @ 60Hz 36-bit color |
| Audio Support | : | Surround sound (up to 7.1ch) or Stereo Digital Audio |
| Transmitter Range | : | Full HD (1080p) up to 100m through HDBaseT |
| IR Passthrough | : | Bi-directional |
| RS-232 Support | : | Yes |
| Max Power Consumption | : | 11W |
| Power Adaptor | : | 24V 1A |
| Dimension | : | 120 × 210 × 120 mm |
| Weight | : | 890 g |
ds_HDBT-GAHD31(AP3-Series_2020-12Dec-17.pdf| Product code | Product name |
|---|---|
| HDBT-GAHD31T/AP3 | HDBaseT Extender (HDMI / Display Port / VGA) |
| DIPP04/AP3 (100m) | HDBaseT 3:1 Scaler Switcher (HDMI / DP / VGA) |
