HDMI over Cat-5 Wall Plate Extender
MU-CATHD11T/2-06-ST (TX)

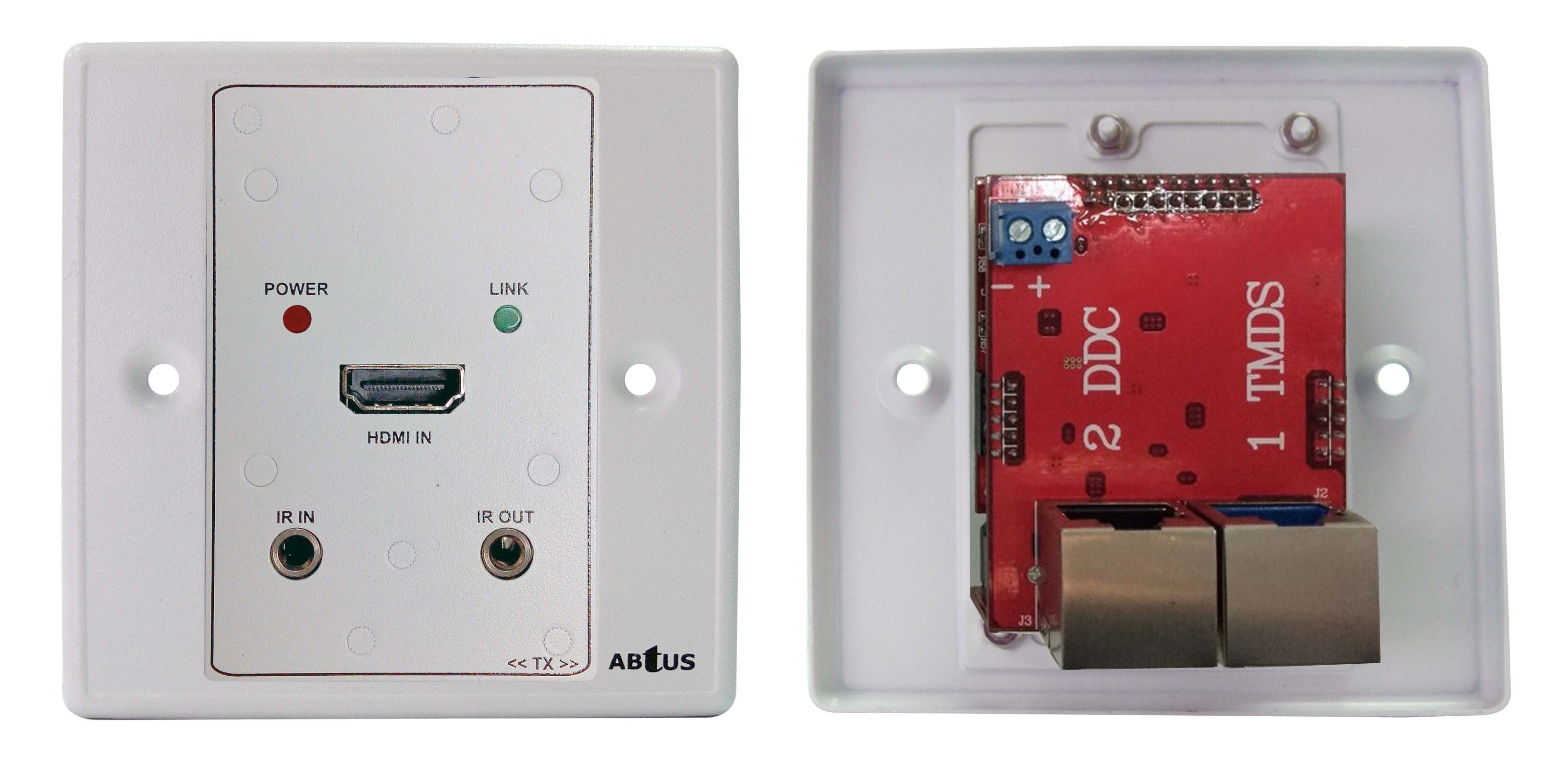

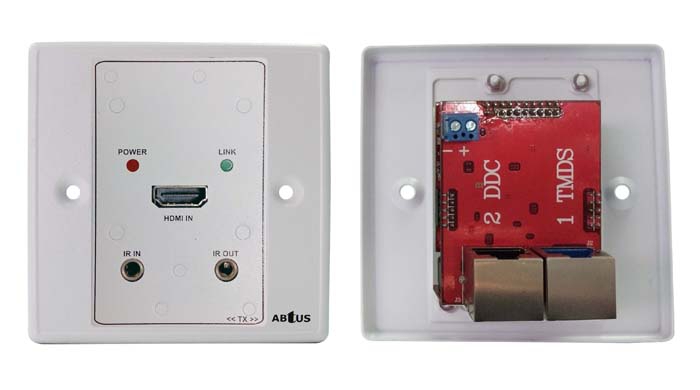

MU-CATHD11T/2-06-ST (TX), HDMI over Cat-5 Wall Plate Extender
● Support HDMI Deep Color
● HDCP compliant
● Extends HDMI signals up to 50m over CAT5e at 1080p
● Purely unaltered uncompressed 7.1ch digital HDMI transmission
● Embedded IR pass-through from RX to TX to control source device
● Easy installation with wall-plate mounting design

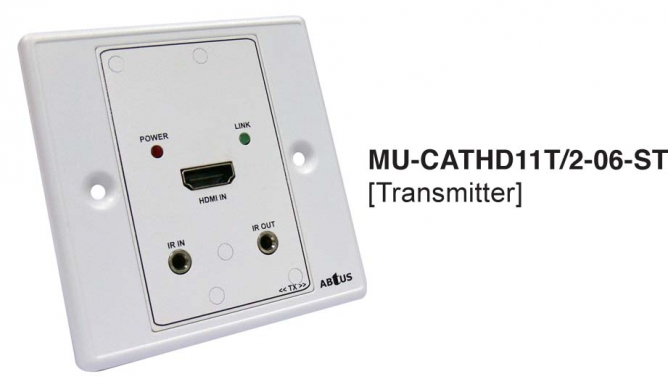

| MU-CATHD11T/2-06-ST [Transmitter] | MU-CATHD11R/2-06-ST [Receiver] | |
| Input: | 1×HDMI | 2×RJ45 + 1×3.5mm |
| Output: | 2×RJ45 + 1x 3.5mm | 1×HDMI |
| HDMI source control: | Controllable via IR pass-through from RX to TX | |
| IR remote control: | Electro-optical characteristics: τ = 25º / Carrier frequency: 20~60kHz | |
| HDMI connector: | Type A (19-pin female) | |
| RJ45 connector: | WE/SS 8P8C | |
| 3.5mm connector: | 3.5mm jack for IR emitter | 3.5mm jack for IR receiver |
| Rotary control: | None | EQ for signal equalization |
| HDMI compliance: | HDMI Deep Color | |
| HDCP compliance: | Yes | |
| Video bandwidth: | Single-link 225MHz (6.75Gbps) | |
| Video support: | 480i / 480p / 720p / 1080i / 1080p60 24/30/36-bit color | |
| Audio support: | Surround sound (up to 7.1ch) or stereo digital audio | |
| HDMI over UTP Transmission (24-bit): | Full HD (1080p)-40m (130ft) [CAT-5] | |
| HDMI equalizartion: | HD (720p/1080i)-50m (165ft) [CAT-5] | |
| Input TMDS signal: | N/A | 8-level digital rotary control |
| Input DDC signal: | 1.2 Volts (peak-to-peak) | |
| 5 Volts (peak-to-peak, TTL) | ||
| ESD protection: | [1] Human body — ±19kV air-gap discharge & ±12kV contact discharge | |
| [2] Core chipset — ±8kV | ||
| PCB stack-up: | PCB stack-up 4-layer board (impedance control — differential 100Ω; single 50Ω) | |
| Fixedness: | Wall plate mounting | |
| Power supply: | 12V 1A DC at either TX or RX | |
| Power consumption: | 1 Watt (max) | |
| Operation temperature: | 0~40°C [32~104°F] | |
| Storage temperature: | -20~60°C [-4~140°F] | |
| Relative humidity: | 20~90% RH (no condensation] | |
| Housing: | Metal enclosure | |
| Gross dimensions : | 95 x 190 x 80mm | |
| Gross weight: | 620 g | |
