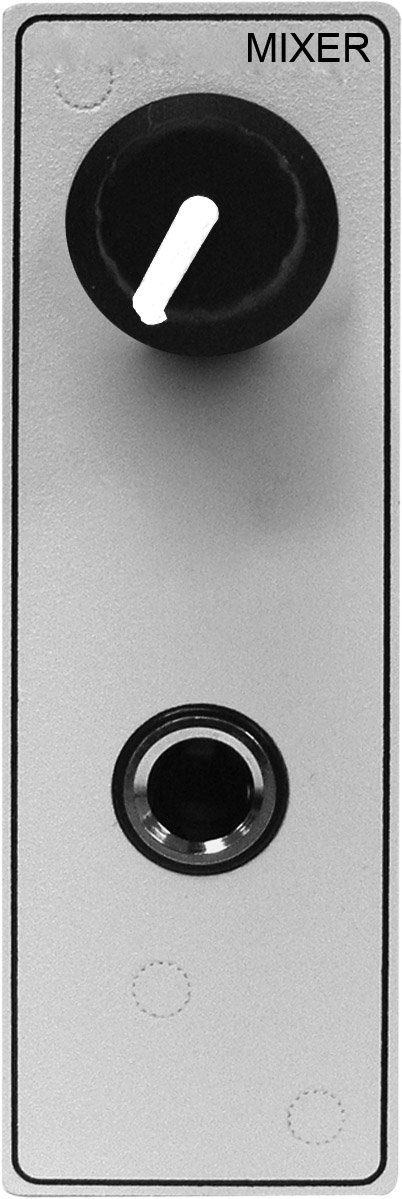

6.3” Mic Module with Build in Mixer
MU-MIX31-A-06-ST
The ABtUS MU-MIX31-A-06-ST Mic Audio /Volume Mixer is one of the most user friendly and installer friendly unit that is specifically designed for an easy and central volume control with both Mic and input lines. It allow users to input any 2 line out from Audio sources and a 6.3” Mic input. The Mic gain can also be individually controlled and the mixed volume can be controlled through the front knob.
● Support HDMI Deep Color
● Simple to use with 2 input background sources for mixing
● Build in 6.3mm Mic connector
● Adjustable controllable Mic Gain
● Compatible with IFP600 Series modular wall plates
● Easy Installation

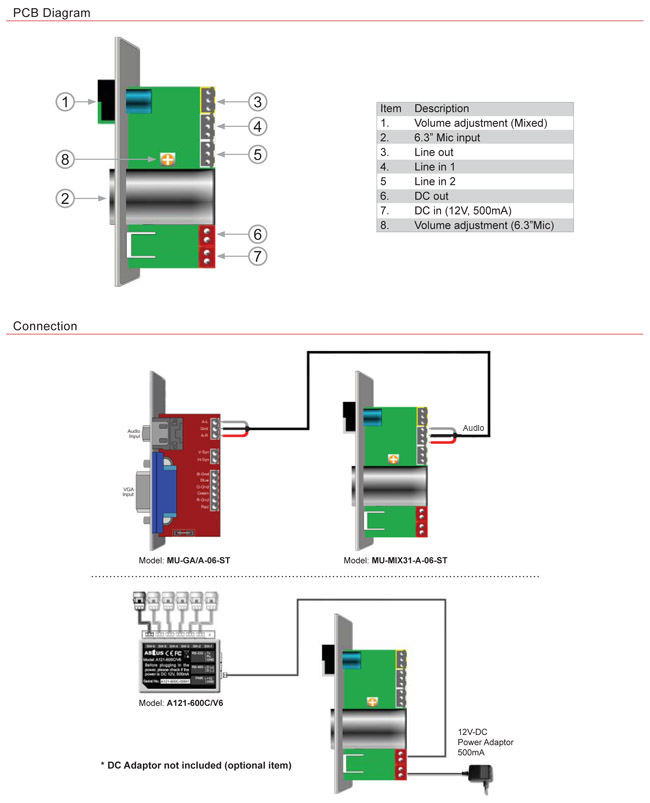

● 12V DC out to power A121-600C/V6 control module
| INPUT | : | 2× Line in (*2.54mm) 1× Microphone (*6.3mm) |
| OUTPUT | : | 1× Line Out (*2.54mm |
| VOLUME | : | Main Volume Control Knob |
| MIC.GAIN | : | Adjustable Mic Gain |
| POWER ADAPTOR | : | 12V-DC, 500mA |
| GROSS DIMENSION | : | 85 × 70 × 50 mm |
| GROSS WEIGHT | : | 40 g |
ds_MU-MIX31-A-06-ST.pdf
