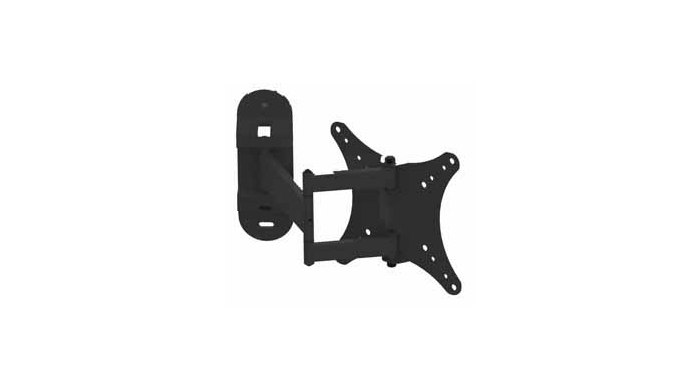

LED/LCD TV Swivel Mount

AV502-S

This Swivel Mount is a slim and durable mounting solution. Perfect for slim LED display. As it allows the LED to be attached closer to the wall. The double arms provide a smooth and fl exible swing movement increasing its viewing angles.

Fast and easy installation
Slim profile 31mm from wall
All steel construction
For VESA standard 100x100, 200X200 and 400x400 (optional extension bars)
Double swivel arms
Include mounting screws

DISPLAY SIZE	:	Suitable for 27" - 40"
GROSS WEIGHT	:	7.5kg (16.5 lbs)
GROSS DIMENSION	:	(256 × 254 × 39 )mm\| (10" × 9.9" × 1.54" inch)
ARM SWIVEL	:	180 degrees
DISTANCE FROM WALL	:	31mm and 34mm with extension bars
LOAD CAPACITY	:	20kg (44 lbs)
COLOR OPTION	:	Black

Expand All | Collapse All

Datasheets

High Resolution Image

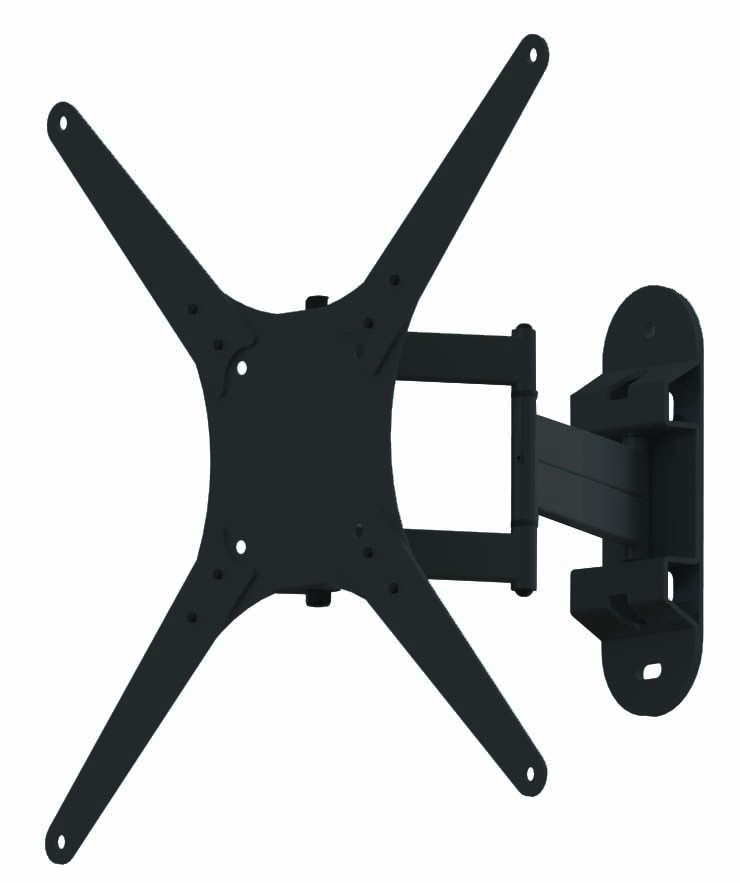

High Resolution Image 1

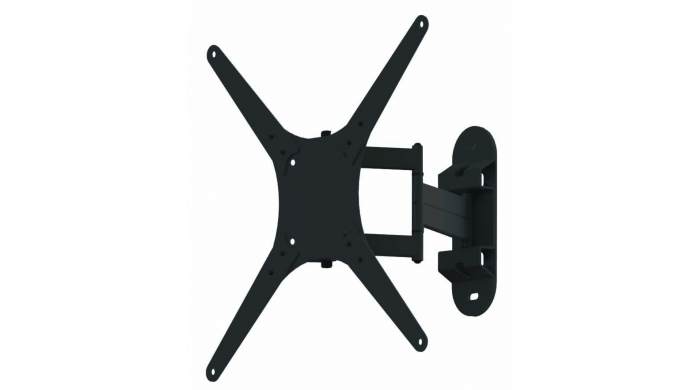

High Resolution Image 2

AV502-S
LED/LCD TV Swivel Mount

Features

Fast and easy installation
Slim profile 31mm from wall
All steel construction
For VESA standard 100x100, 200X200 and 400x400 (optional extension bars)
Double swivel arms
Include mounting screws

Technical Spec

DISPLAY SIZE	:	Suitable for 27" - 40"
GROSS WEIGHT	:	7.5kg (16.5 lbs)
GROSS DIMENSION	:	(256 × 254 × 39 )mm\| (10" × 9.9" × 1.54" inch)
ARM SWIVEL	:	180 degrees
DISTANCE FROM WALL	:	31mm and 34mm with extension bars
LOAD CAPACITY	:	20kg (44 lbs)
COLOR OPTION	:	Black

Download

Software:

Manual Guide:

Datasheets:

RS-232 Command Codes:

RS-232 Command Codes (Docklight file):

Brochure:

Other download:

High Image:

High Resolution Image 1
High Resolution Image 2

Technical Specification

GROSS WEIGHT	7.5kg (16.5 lbs)
DISTANCE FROM WALL	31mm and 34mm with extension bars
LOAD CAPACITY	20kg (44 lbs)
COLOR OPTION	Black
GROSS DIMENSION	256 × 254 × 39 )mm\| (10" × 9.9" × 1.54" inch)
ARM SWIVEL	180 degrees
DISPLAY SIZE	Suitable for 27" - 40"

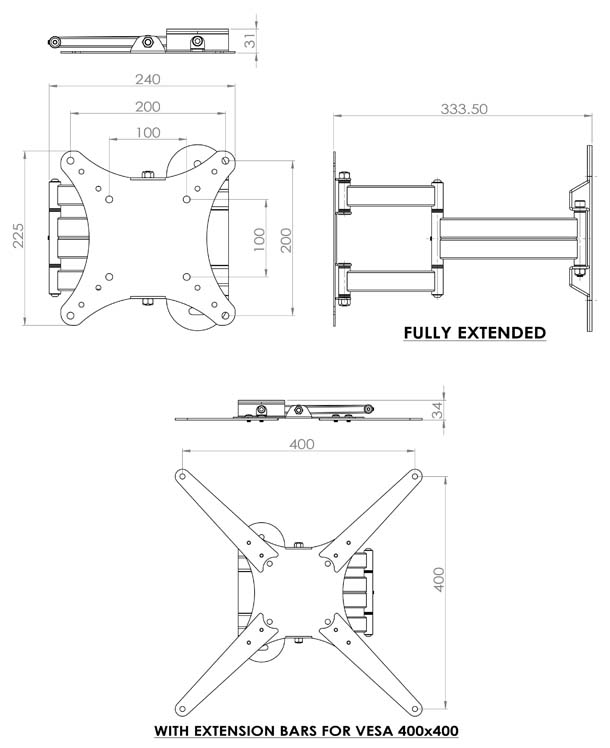

Diagram
