4 × 4 HDMI Matrix Switcher
MAX-HDMI44P

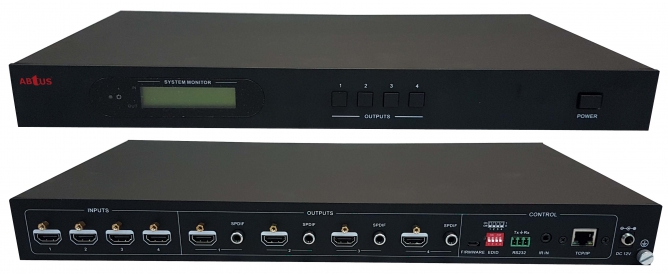

The ABtUS MAX-HDMI44P is a professional 4x4 HDMI Matrix Switcher that features up to 4 HDMI 1.4 & HDCP 1.4 compliant signal to output to 4 HDMI outputs each with de-embedded audio. It provides 4 audio ports for de-embedded HDMI audio output. It also include a powerful EDID management tool to ensure reliable AV distribution and routing.
● 4×4 HDMI matrix with 4 de-embedded HDMI audio ports
● Support signal up to 4K×2K@60Hz & 1080p 3D
● HDMI1.4 & HDCP1.4 compliant
● Transmit 4K×2K@60Hz signal up to15m
● SPDIF ports for de-embedded HDMI audio output
● EDID management
| INPUT | : | 4× HDMI |
| INPUT CONNECTOR | : | Female Type-A HDMI |
| OUTPUT | : | 4 × HDMI 4 × SPDIF audio |
| OUTPUT CONNECTOR | : | Female Type-A HDMI 3.5mm RCA connector |
| STANDARDS | : | HDMI1.4 & HDCP1.4 |
| CONTROL PORTS | : | 1 × IR IN (3.5mm jack) 1 × TCP/IP (female RJ45) 1 × RS232 (3-pin pluggable terminal block) |
| EDID MANAGEMENT | : | In-built EDID data and manual EDID management |
| AUDIO SIGNAL | : | Dolby Digital, DTS, DTS-HD |
| MAX RESOLUTION | : | 4K × 2K, 1080P 3D |
| TRANMISSION DISTANCE | : | 4Kx2K@60Hz ≤15m |
| POWER SUPPLY | : | DC 24V 2.71A |
| POWER CONSUMPTION | : | 32W (Full Load) 2.2W (Standby) |
| TEMPERATURE | : | 0 ~ 50°C |
| RELATIVE HUMIDITY | : | 10% ~ 90% |
| DIMENSION | : | 437 × 44 × 235 mm |
| WEIGHT | : | 1.96 kg |
