8x8 HDMI Matrix With Mirrored RJ45 outputs

MAX-HDMI816/AP4

product

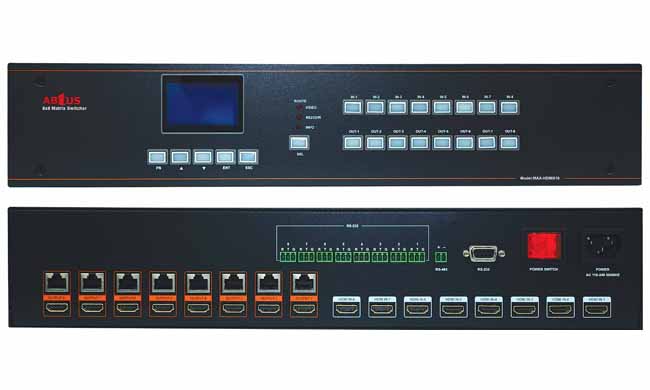

The ABtUS MAX-HDMI816/AP4 is a 8x8 matrix that supports routing of 8 HDMI inputs to 8 HDMI outputs and up to 8 mirrored RJ45 outputs (up to 50m using CAT-6). It can route high definition video sources plus multi-channel (up to 7.1-channel) digital audio from any input to any output.

The matrix has a fast start up time of 3-5 seconds and a rapid switching time of 0-3 seconds

● Fast response time < 3 seconds for channel switching
● Fast start up time 3~5 seconds to fully operational
● Supports HDMI 2.0 Deep Color and up to full 3D & 4K 2K @60hz
● HDCP 1.4 compliant
● Extends HDMI signals up to 30m over CAT-5e or up to 50m over CAT-6
● Supports PoC (Power over Cable)
● RS-232 and CEC signal routing
● Controllable via RS-232 and Front Panel
● Real time status monitoring
● Smart power management - ECO power saving management
● Independent MCU for each I/O slot to improve performance
● HDMI jitter cleaning - Rebuilds the digital signals for transmission over longer distances
● Automatic error detection and data synchronization
● Automatically detect operating temperature and adjust fan speed for quietest performance
● Supports multi machine mode - Each matrix can be assigned a unique machine ID
● Supports 7.1 channel digital audio
● Supports default HDMI EDID and learns the EDID of displays
● Supports front panel key lock
● Supports source broadcasting
● Easy installation with 2 RU rack-mounting

Input: 8 HDMI inputs
  8 RS-232/IR/CEC inputs
Output: 8 HDMI outputs
  8 RJ45 outputs (up to 50m) (max resolution: 1080p@60Hz)
  up to 8 RS-232 outputs
  up to 16 CEC outputs
HDMI source control: RS-232 control
  Front control
HDMI connector: Electro-optical characteristics: π = 25° / Carrier frequency: 20-60kHz
RJ-45 connector: Type A [19-pin female]
RS-232 connector: WE/SS 8P8C [Reversed mode]
Modular I/O slots: 8 x input slots , 8 x output slots
HDMI compliance: HDMI 2.0 Deep Color and up to full 3D & 4K2K@60 hz
HDTV compatibility: Yes
HDCP compliance Yes [HDCP 1.4]
EDID Management: Able to set, create, capture and stores EDID configurations
Video bandwidth: 12.75Gbps [4.25Gbps per graphic channel]
Video supports: 480i/ 480p/ 720p/ 1080i/ 1080p@60 (on RJ45 outputs) / 4K 2K@60 hz [4:2:0] (on HDMI outputs)
Audio support: Surround sound (up to 7.1ch) or stereo digital audio
Fixedness: 19” rack-mount (2 RU) with ears & wall hanging holes
Power supply: AC Power 100-240V AC
Operation temperature: 0° to +40°C [32~104°F]
Storage temperature: -40° to +70°C [32~104°F]
Relative humidity: 10% to 90% RHL, (non-condensing)
Enclosure: Metal case
Product dimension: 290 mm × 85 mm × 445 mm
Product weight: 5.6 kg
