HDMI 1.4 4K seamless 8x8 Matrix Switching
MAX-HDMI88S

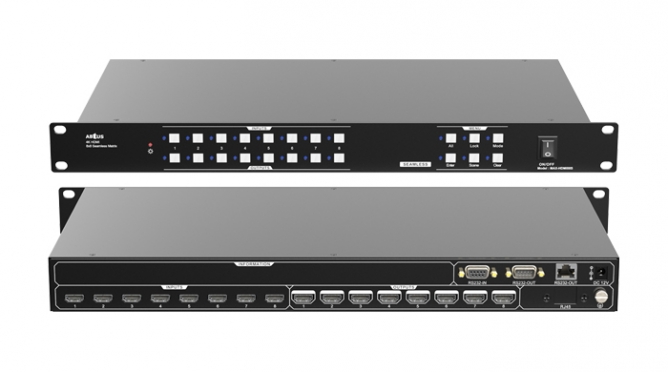

The MAX-HDMI88S is a professional 8x8 HDMI 1.4 Seamless Matrix Switcher with EDID management. It includes 8 HDMI inputs, 8 HDMI outputs. The matrix switcher features comprehensive EDID management to ensure maximum functionality with a wide range of video sources.
The matrix switcher supports RS-232 control options.
● Supports seamless and fast switching from multiple inputs to multiple outputs.
● Supports HDMI/DVI for both inputs and outputs, supports resolution up to 3840x2160@30Hz.
● Input and output color space support RGB4:4:4, YCbCr4:4:4,YCbCr4:2:2, etc..
● Built-in 7 different EDID for inputs, default 1920x1080@60Hz 2ch, supports user defined.
● Input is compatible with DVI / HDMI signal.
● Output support combo port default 9 output resolutions selectable.
● Output signal combination port format support HDMI, DVI.
● Support low power consumption standby and power cut off memory.
● Supports continuous hot-plugging and unplugging of HDMI interface.
● Support two-way serial port control, panel key control, optional network port control.
● 1U height 19-inch standard cabinet mount chassis
| Video | |
| Input | 8 x HDMI |
| Input Connector | 8 x Type-A female HDMI |
| Input HDMI Resolution | Up to 4K@30Hz RGB4:4:4, YCbCr4:4:4, YCbCr4:2:2 |
| Output | 8 x HDMI |
| Output Connector | 8 x Type-A female HDMI |
| Output HDMI Resolution | Up to 4K@30Hz RGB 4:4:4, |
| HDMI Standard | 1.4 |
| HDCP Version | 1.3 |
| HDMI Embedded Audio | PCM |
| Control | |
| Control Port | 1 x RS232 in, 2 x RS232 out |
| Port Connector | 1 x DB9 RS232 input female connector, |
| 1 x DB9 RS232 output male connector, | |
| 1 x RJ45 RS232 output connector | |
| Keys | White button (Supports switching and scene calling) |
| General | |
| Transmission Distance | 1080P ≤ 15m; 4K ≤ 5m; |
| Bandwidth | 10.2Gbps |
| Working Temperature | 0°C~+40°C |
| Storage Temperature | -10°C~+50°C |
| Relative Humidity | 10%~90% |
| Power Supply | DC 12V 1A |
| Size (W*D*H) | 437mm x 236mm x 44mm |
| Net weight | About 3 kg |
