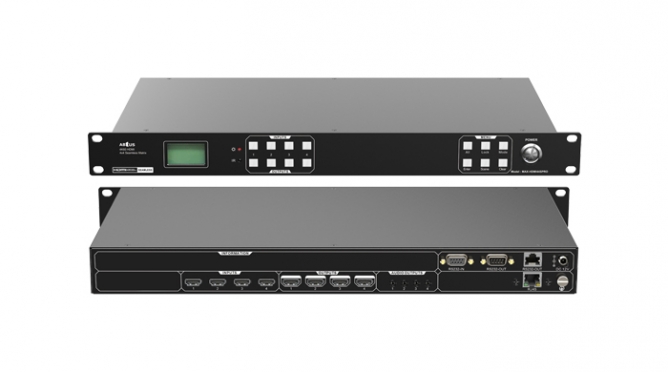

HDMI 2.0 4K60 Seamless 4x4 Matrix Switcher
MAX-HDMI44SPRO
The MAX-HDMI44SPRO is a professional 4x4 HDMI 2.0 Seamless Matrix Switcher with EDID management. It includes 4 HDMI inputs, 4 HDMI outputs. It also features 4 analog audio outputs for audio matrix. The matrix switcher features comprehensive EDID management to ensure maximum functionality with a wide range of video sources.
The matrix switcher supports front panel, IR, RS-232, and TCP/IP control options.
● Supports seamless switching.
● Supports power-off memory function.
● Support 8 built-in EDID and customed EDID.
● 15 output resolutions are available by default.
● Support 4 output channels audio and video separation.
● Supports HDMI2.0, and resolution up to 4096x2160@60Hz.
● Supports color space RGB 4:4:4, YCbCr4:4:4 and YCbCr4:2:2.
● Support bi-directional RS-232, IR, TCP/IP and front panel to control.
| Video | |
| Input | 4 x HDMI |
| Input Connector | 4 x Type-A female HDMI |
| Input HDMI Resolution | Up to 4K@60Hz 4:4:4 |
| Output | 4 x HDMI |
| Output Connector | 4 x Type-A female HDMI |
| Output HDMI Resolution | Up to 4K@60Hz 4:4:4 |
| HDMI Version | 2 |
| HDCP Version | 2 |
| Analog Audio Output | |
| Output | 4 x analog L/R audio |
| Output Connector | 4 x 3.5mm audio jack |
| Audio Format | PCM 2.0 |
| Control | |
| Control Port | 1 x Built-in IR |
| 1 x RS232-IN, | |
| 2 x RS232-OUT, | |
| 1 x TCP/IP | |
| Port Connector | 1 x DB9 female port |
| 1 x DB9 male port | |
| 2 x RJ45 | |
| General | |
| Transmission Distance | 4K 60Hz ≤ 5m; 1080p<15m |
| Operation Temperature | 0 ~ +40°C |
| Storage Temperature | -10 ~ +50°C |
| Relative Humidity | 10% ~ 90% |
| External Power Supply | DC 12V 2A |
| Dimension (W*H*D) | 483 x 44 x 236mm |
| Net Weight | 2.55KG |
ds_ MAX-HDMI44SPRO 2025-09sept-17.pdf
