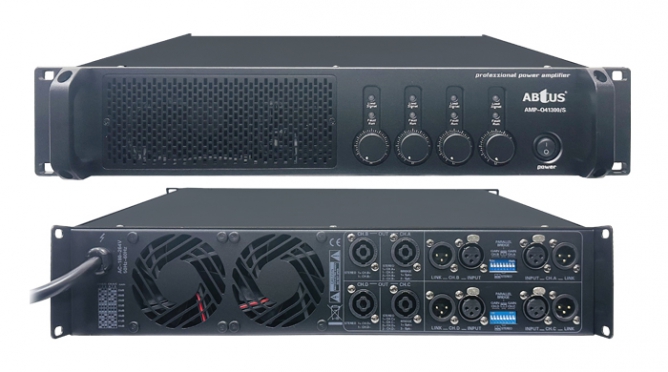

Four Channel Power Amplifier (4 x 1300W)
AMP-O41300/S
Four Channel Power Amplifier (4 x 1300W)
- Class-D power amplifier
- Power output 4 x 1300W @ 8Ohm
- 19” rack mount with 2U height
- Support Stereo, Bridge & Parallel mode
- Channel indicators for power, signal, clipping, fault status
- High-efficiency ventilation fans to avoid heat accumulation
| Power (AES) @ 8Ω: | 4 x 1300W (RMS: 920W, Peak: 1840W) |
| Power (AES) @ 4Ω: | 4 x 2080W (RMS: 1470W, Peak: 2940W) |
| Bridge Mode (AES) @ 8Ω: | 2 x 3380W (RMS: 2390W, Peak: 4780W) |
| Bridge Mode (AES) @ 4Ω: | 2 x 4056W (RMS: 2870W, Peak: 5740W) |
| Inputs: | 4 x XLR (Balanced) |
| Output: | 4 x 4-pole Speakon (NEUTRIK) |
| Operating mode: | Stereo/Bridge/Parallel |
| Frequency Response: | 5Hz-20kHz, +0/-1dB |
| S/N Ratio: | 110dB |
| Total Harmonic Distortion (THD): | <0.1%, 20Hz-20kHz |
| Input Gain: | 23dB, 26dB, 29dB, 32dB, 35dB, 38dB, 41dB, 44dB |
| Input Impedance: | 20k ohms (balanced), 10k ohms (unbalanced) |
| Front Panel: | - Power Switch - Channel gain control knob - LED Displays, showing power, signal, clipping and fault status |
| Power: | 90 - 264VAC , 50Hz |
| Dimension: | 483mm x 365mm x 88mm (W x D x H) |
| Weight: | 13Kg |
Typical applications
Multi-purpose Hall, sports hall, Ballrooms, Church and etc
