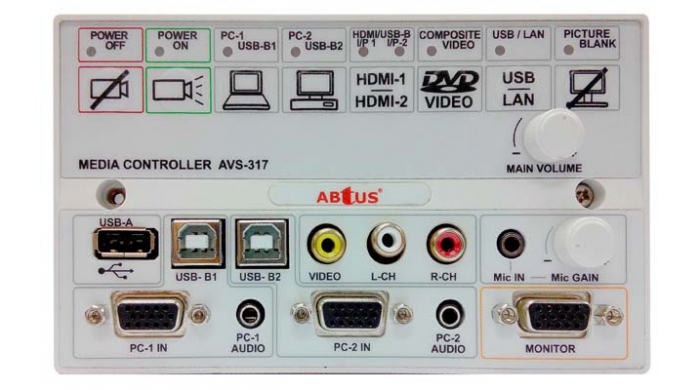

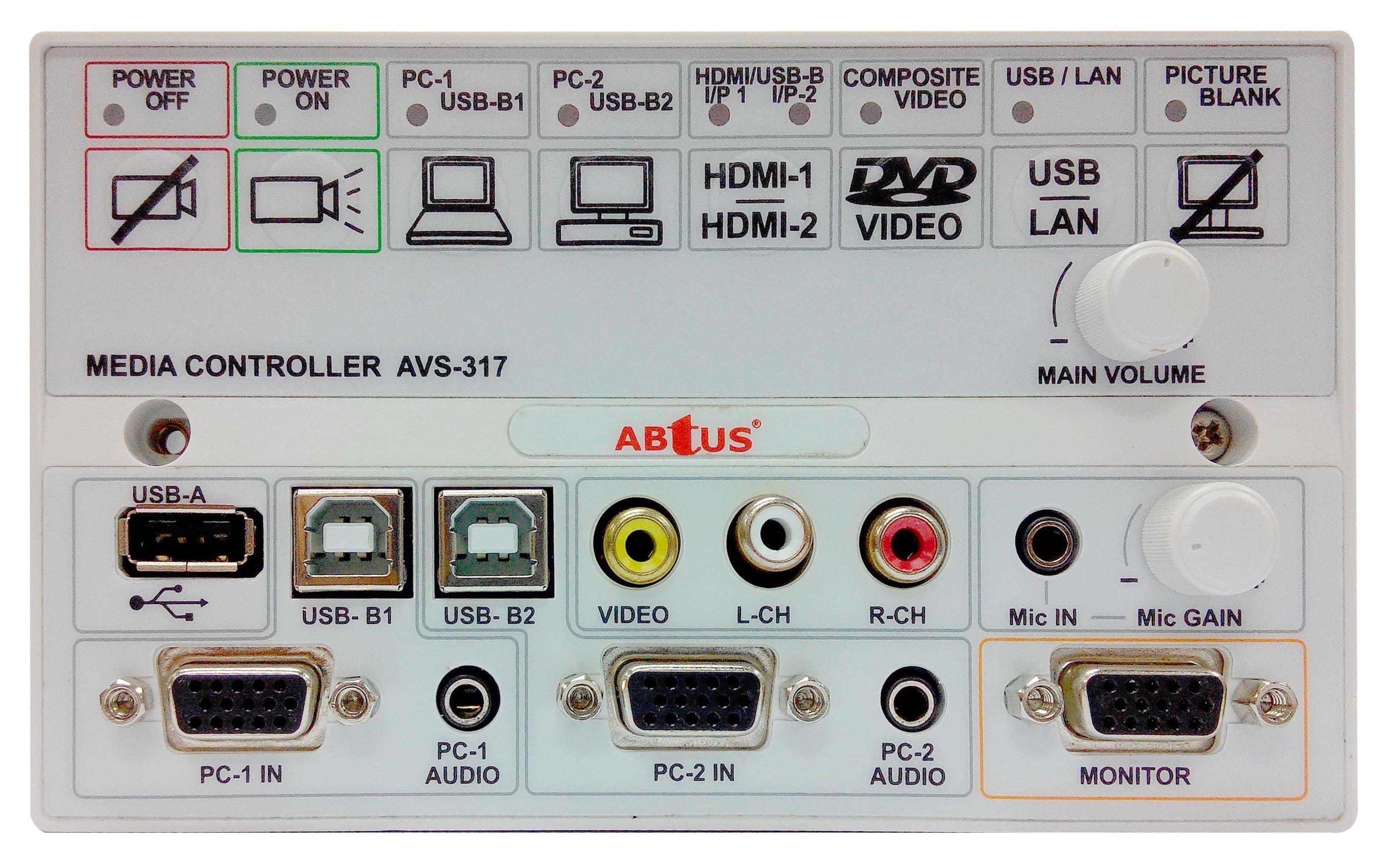

The ABtUS AVS-317 Media Control Panel is one of the most user friendly and installer friendly unit that is specifically designed for an easy and central control of any AV projection system with USB interactive connectivity. It removes the need for over-complicated and multiple remote control handsets. With the 2:1 USB-B switcher, switching for projection with interactive can now be done with just a push of a button.
“User Programmable” with Window based Application Software
Simple to use with one to one function controlled button
Works well with any monitors, projectors as well as interactive system
Supports 2:1 x 2 VGA and 1:1 HDMI DA
Easy installation with standard 2.45mm connector and cabling
Fully self contained / integrated projector controller with AV switcher
Build in USB buffer with best connectivity for interactive system and USB thumb drive.
INPUT
:
VGA × 2 (*D-Sub 15pin)
PC-Audio × 2 (*3.5mm)
C-Video × 1 (*RCA)
Microphone × 1 (*3.5mm)
USB-B × 2 (switcher with build in buffer)
USB-A × 1 (for Thumb Drive with build in buffer)
HDMI × 1 (19 pin female with build in buffer)
S-Video × 1 (Pass through)
Audio loop back (HDMI)
OUTPUT
:
VGA × 2 (** 1 to projector and 1 for monitor)
HDMI × 1
S-Video × 1
C-Video × 1
Main stereo audio × 1
USB-B × 1
USB-A × 1
VGA BANDWIDTH (-3dB)
:
2: 1 × 2 Switching (900MHz R+G+B)
MAX RESOLUTION
:
1280 × 1024 (VGA), Full HD 1080p (HDMI)
All CABLE LENGTH
:
Up to 15 meter (HDMI), Up to 28 meter (all other cables) (*subject to grade of cables used)
CONFIGURABLE COM PORT
:
1 × RS-232 (9600, 8 data bit, non parity and 1 stop bit)
1 × RS-232 (8 data bit and 1 stop bit)
BAUD RATE
:
9600 to 115200
PARITY BIT
:
Non, Even or Odd
DELAY TIME
:
Projector "ON/OFF" delay time (*in sec) 1 to 99
CONTROL BUTTON
:
Number of user defined "Control Button" × 8 (10 commands)
Available protocol for each "Control Button" × 1 ( or × 2 depending on configurations)
The ABtUS AVS-317 Media Control Panel is one of the most user friendly and installer friendly unit that is specifically designed for an easy and central control of any AV projection system with USB interactive connectivity. It removes the need for over-complicated and multiple remote control handsets. With the 2:1 USB-B switcher, switching for projection with interactive can now be done with just a push of a button.
Features
“User Programmable” with Window based Application Software
Simple to use with one to one function controlled button
Works well with any monitors, projectors as well as interactive system
Supports 2:1 x 2 VGA and 1:1 HDMI DA
Easy installation with standard 2.45mm connector and cabling
Fully self contained / integrated projector controller with AV switcher
Build in USB buffer with best connectivity for interactive system and USB thumb drive.
Technical Spec
INPUT
:
VGA × 2 (*D-Sub 15pin)
PC-Audio × 2 (*3.5mm)
C-Video × 1 (*RCA)
Microphone × 1 (*3.5mm)
USB-B × 2 (switcher with build in buffer)
USB-A × 1 (for Thumb Drive with build in buffer)
HDMI × 1 (19 pin female with build in buffer)
S-Video × 1 (Pass through)
Audio loop back (HDMI)
OUTPUT
:
VGA × 2 (** 1 to projector and 1 for monitor)
HDMI × 1
S-Video × 1
C-Video × 1
Main stereo audio × 1
USB-B × 1
USB-A × 1
VGA BANDWIDTH (-3dB)
:
2: 1 × 2 Switching (900MHz R+G+B)
MAX RESOLUTION
:
1280 × 1024 (VGA), Full HD 1080p (HDMI)
All CABLE LENGTH
:
Up to 15 meter (HDMI), Up to 28 meter (all other cables) (*subject to grade of cables used)
CONFIGURABLE COM PORT
:
1 × RS-232 (9600, 8 data bit, non parity and 1 stop bit)
1 × RS-232 (8 data bit and 1 stop bit)
BAUD RATE
:
9600 to 115200
PARITY BIT
:
Non, Even or Odd
DELAY TIME
:
Projector "ON/OFF" delay time (*in sec) 1 to 99
CONTROL BUTTON
:
Number of user defined "Control Button" × 8 (10 commands)
Available protocol for each "Control Button" × 1 ( or × 2 depending on configurations)
