18Gbps HDMI Full Scaler with Audio Breakout
SCLHD11/4K

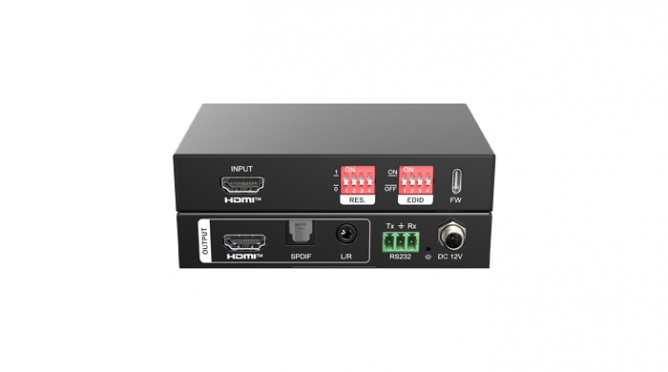

The SCLHD11/4K is a compact yet powerful HDMI full scaler with audio breakout features. It delivers full 18Gbps HDMI 2.0 with HDCP 2.2 compliance. It also features scaling up to 4K@60Hz RGB 8-bit, and downscaling to 640×480@60Hz. DIP switchers for scaling and EDID make is easy to switch video resolution. RS232 is also provided for advanced control.
● 18Gb, HDMI 2.0, HDCP 1.4/2.2 compliant.
● UP scaling video up to 4K@60Hz 4:4:4.
● Downscaling video up to 640×480@60Hz.

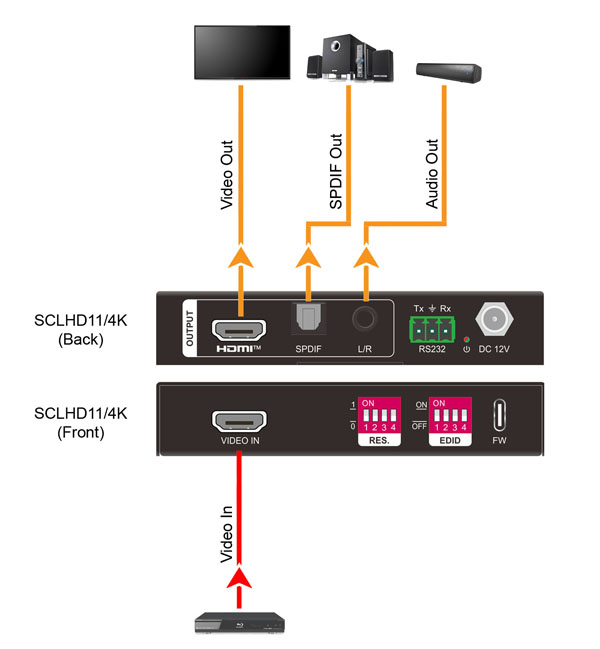

● Audio de-embedded to digital or analog.
● Switchable output resolution.
● CEC Passthrough.
● Advance EDID management.
● Control by DIP Switch, RS-232.
| Video | |
| Video Input | 1x HDMI 2.0 Type-A female port |
| Input Resolution | Up to 4K@60Hz 4:4:4, HDR |
| Video Output | 1x HDMI 2.0 Type-A female port |
| Output Resolution | Up to 4K@60Hz RGB 8-bit |
| HDMI Version | HDMI 2.0 |
| HDCP Version | Up to 2.2 |
| HDMI Audio Signal | LPCM 2.0 |
| Digital Audio Output | |
| Output | 1x S/PDIF |
| Audio Format | LPCM 2.0 |
| Audio Sample Rate | 48KHz |
| Analog Audio Output | |
| Output | 1x Analog L/R Audio |
| Output Connector | 1x 3.5mm audio jack |
| Audio Format | LPCM 2.0 |
| Frequency Response | 20 Hz to 20 kHz, ±1dB |
| Max Output Level | 2.0Vrms ± 1dB |
| THD+N | < 0.05%, 20 Hz – 20 kHz |
| SNR | > 80dB |
| Crosstalk Isolation | < -80 dB |
| Control | |
| RS-232 | 1x 3-pin serial port |
| General | |
| Bandwidth | 18Gbps |
| Environment Temperature | -5°C ~ +55°C |
| Storage Temperature | -25°C ~ +70°C |
| Relative Humidity | 10% ~ 90% |
| External Power Supply | Input: AC 100V~240V, 50/60Hz; |
| Output: DC 12V/1A | |
| Power Consumption | ≤ 4.5W |
| Dimension (W x H x D) | 110 x 21 x 80 mm |
| Net Weight | 215g |
