1×4 HDMI Distribution Amplifier over Single CAT-5/5e/6
CAT-HD14TA-G

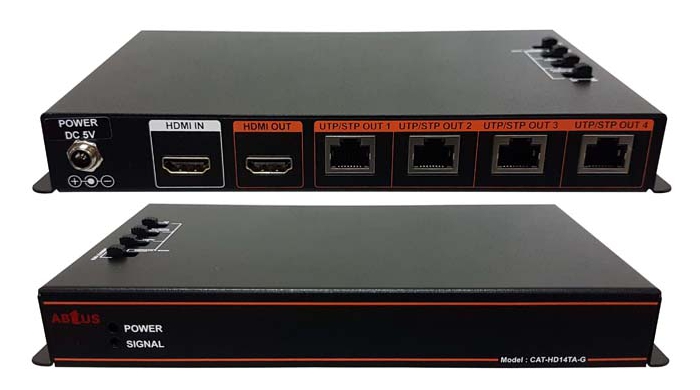

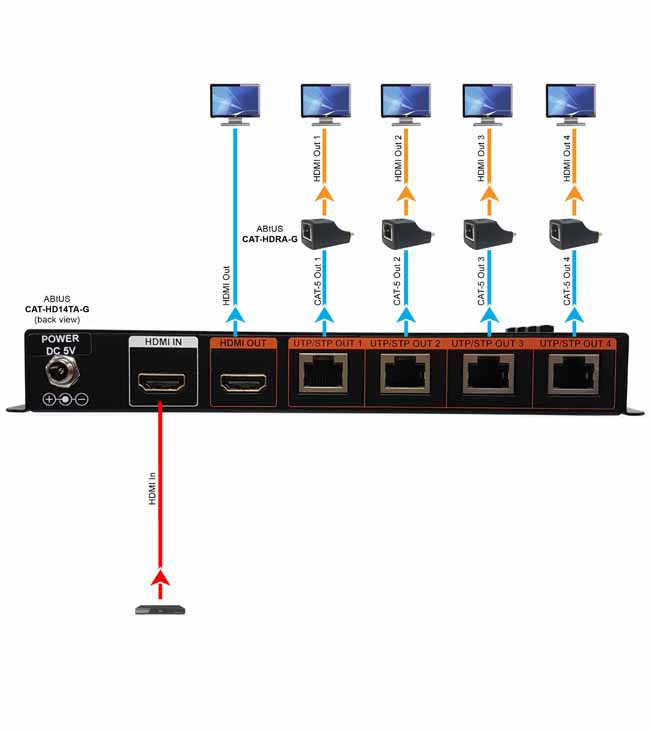

The ABtUS CAT-HD14TA-G is a HDMI 1x4 Splitter over Cat.5/5e/6 with Local output enable high definition video and high quality audio to be transmitted to different locations over a long distance. The devices are cascadable, allowing you to extend HDMI compliant displays almost anywhere. The input HDMI source can be duplicated and distributed to up to 8 HDMI enable displays through cost effective Cat-5/5e/6 cables with HDMI over CAT5 receivers (CAT-HDRA-G).
For convenience, CAT-HD14TA-G is also equipped a local HDMI output for monitoring. With the built in equalization, the input HDMI cable can be extended up to 20 meters (66 feet) under Full HD 1080p, making the overall transmission distance much longer than regular HDMI splitters or matrix switchers.
• Support HDMI Deep Color & 3D
• HDCP compliant
• HDMI 3D video support wide frequency range 25MHz-225MHz
• Regenerates the HDMI signal
• HDMI local output for monitoring
• Supports default HDMI EDID and has the ability to learn the EDID of displays
• Extends up to 20m (66ft) of input HDMI cable
• Pure unaltered uncompressed 7.1ch digital HDMI over Cat.5/5e/6 cable transmission

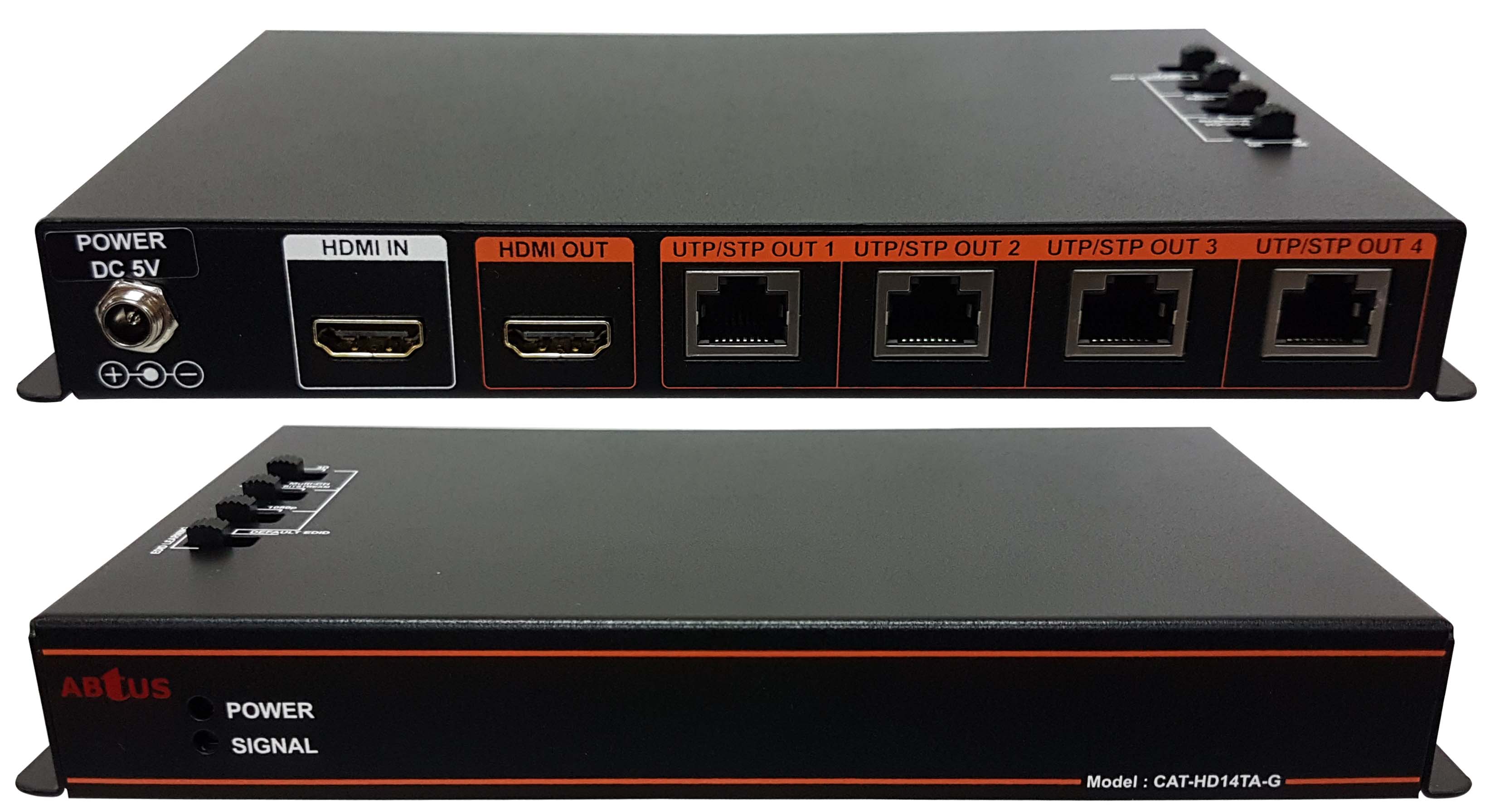

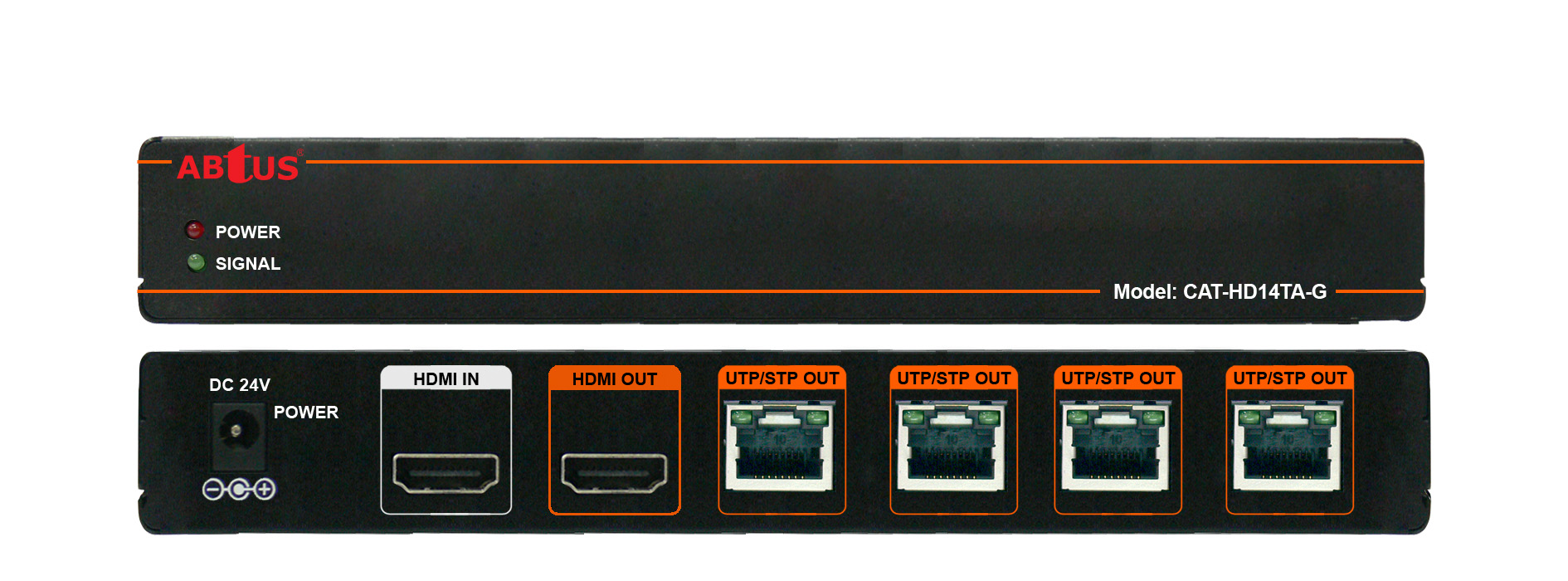

| INPUT | : | 1× HDMI |
| OUTPUT | : | 4× RJ-45 1× HDMI |
| HDMI CONNECTOR | : | Type A [19-pin female] |
| RJ-45 CONNECTOR | : | WE/SS 8P8C |
| HDMI COMPLIANCE | : | HDMI Deep Color & 3D |
| HDCP COMPLIANCE | : | Yes |
| VIDEO BANDWIDTH | : | Single-link 225MHz [6.75Gbps] |
| VIDEO SUPPORT | : | 480i / 480p / 720p / 1080i / 1080p60 up to 36-bit color |
| AUDIO SUPPORT | : | Surround sound (up to 7.1ch) or stereo digital audio |
| EQUALIZATION | : | Built-in |
| INPUT TMDS SIGNAL | : | 1.2 Volts [peak-to-peak] |
| OUTPUT DDC SIGNAL | : | 5 Volts [peak-to-peak, TTL] |
| ESD PROTECTION | : | [1] Human body model — ±19kV [air-gap discharge] & ±12kV [contact discharge] [2] Core chipset — ±8kV |
| PCB STACK-UP | : | 4-layer board [impedance control ̶ differential 100Ω; single 50Ω |
| FIXEDNESS | : | 1U rack-mounting with ears |
| POWER SUPPLY | : | 5V 4A DC |
| POWER CONSUMPTION | : | 13 Watts [max] |
| OPERATION TEMPERATURE | : | 0~40°C [32~104°F] |
| STORAGE TEMPERATURE | : | -20~60°C [-4~140°F] |
| RELATIVE HUMIDITY | : | 20~90% RH [no condensation] |
| HOUSING | : | Metal enclosure |
| DIMENSION | : | 270 × 175 × 80 mm |
| WEIGHT | : | 1 kg |
