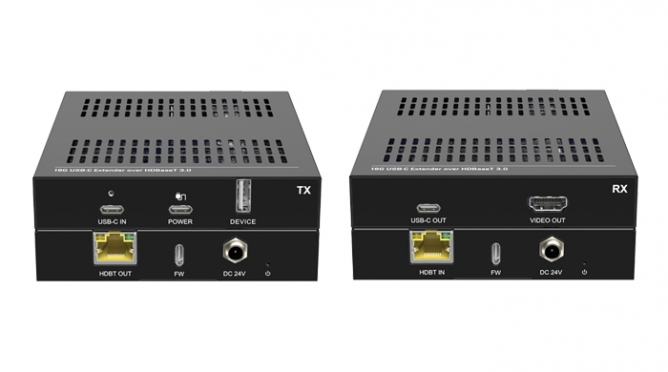

USB-C To USB-C/HDMI HDBaseT Extender 100M w USB2.0
HDBT-UUB12H-100M

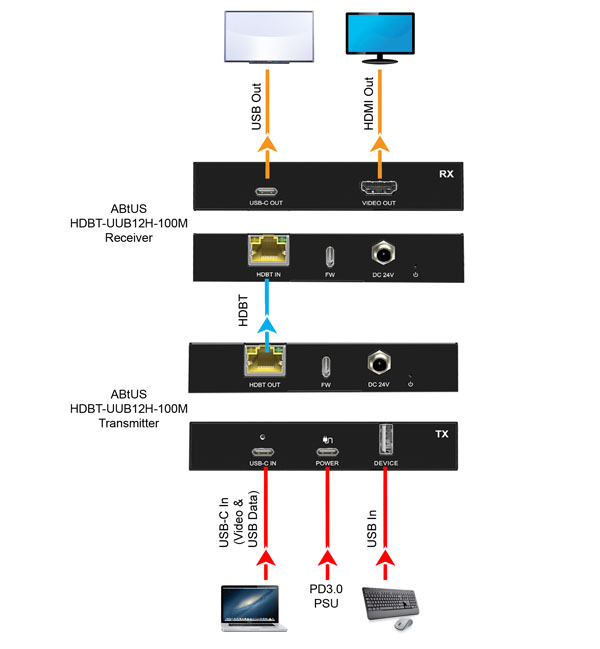

The ABtUS HDBT-UUB12H-100M is an extender that delivers crystalclear video transmission with USB-C input supporting resolutions up to 4K@60Hz 4:4:4 or 1080p video signals over distances up to 100 meters, ensuring reliable performance across long cable runs. The system supports two-way 24V Power over Cable (PoC), simplifying installation by allowing power to be supplied from either end. Additionally, the USB-C input benefi ts from PD charging, keeping connected devices powered during use. An extra USB-A port enables KVM control, marking it ideal for interactive workspaces and remote desktop applications.
- USB-C video up to 4K@60Hz 4:4:4.
- Transmit 4K@60Hz 4:4:4 or 1080p up to 100m.
- Supports two-way 24V PoC.
- Provide PD charging for USB-C IN.
- Extra USB-A for KVM control.
| TX | RX | |
| Input: | 1 x USB-C, DP Alt Mode | 1 x RJ-45 for HDBaseT IN |
| 1x USB-C, PD Charging | ||
| Output: | 1 x RJ-45 for HDBaseT OUT | 1 x USB-C, DP Alt Mode |
| Provide up to 5V/0.5A | ||
| USB-A | 1 x USB 2.0 Type-A | |
| PD Standard | PD 3.0, Up to 100W | |
| Video Resolution | Up to 4K@60Hz 4:4:4 | Up to 4K@60Hz 4:4:4 |

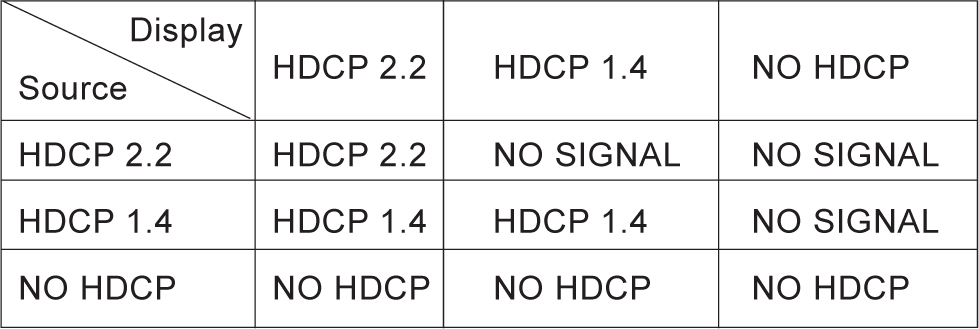

| HDCP Version | Input: HDCP2.2, HDCP 1.4 compliant | |
| Output: | ||
 |
||
| General | ||
| Control | 1 x USB-C, For transmitting motion commands from the USB-C touch screen. | |
| 1 x USB-A, For keyboard and mouse | ||
| HDBT Standard | HDBaseT 3.0 | |
| HDBT Transmission Distance | 4K@60Hz 4:4:4 or 1080p → 100m | |
| HDMI Cable Length | 4K@60Hz 4:4:4 → 5m | |
| 4K@30Hz 4:4:4 → 10m | ||
| 1080p → 15m” | ||
| Operation Temperature | -10°C ~ +55°C | |
| Storage Temperature | -25°C ~ +70°C | |
| Relative Humidity | 10%-90% | |
| Power | DC 24V/1.25A | |
| Power Consumption | 23.1W | |
| Dimension (W x H x D) | 210 x 110 x 12.5mm | 210 x 110 x 12.5mm |
| Net Weight | 335g | 335g |
