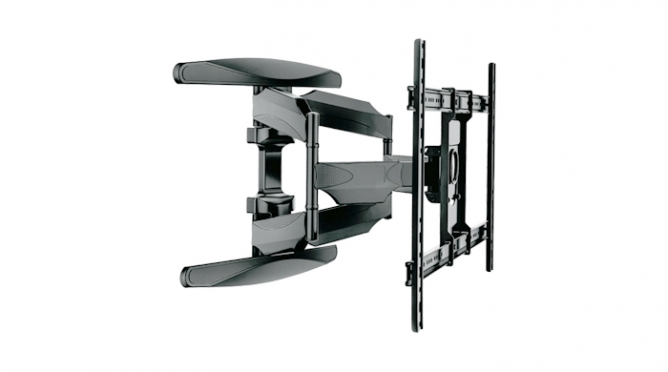

LCD/LED Display Cantilever Mount (Double Arm)

AV515

product

This double arm cantiever mount is designed with 4 arms for more stable and smoother movement. It comes with a front plate with varies VESA mounting standard.

• Fast and easy installation
• Integrated cable management
• VESA mounting holes 600 × 400 max
• Suitable VESA 200x200, 300x300, 400x200, 400x400 and 600x400

Display Size:  Suitable for 55” to 85”
Gross Dimension:  590mm x 290mm x 460mm
Gross Weight:  28.7 kg
Arm Swivel:  180 degrees
Tilt Angle:  -5 / +8 degrees
Distance from Wall:  60 - 500mm
Load Capacity:  68.2 kg
Cable Management:  Yes
Color:  Black


AV515
LCD/LED Display Cantilever Mount (Double Arm)

This double arm cantiever mount is designed with 4 arms for more stable and smoother movement. It comes with a front plate with varies VESA mounting standard.
Features

• Fast and easy installation
• Integrated cable management
• VESA mounting holes 600 × 400 max
• Suitable VESA 200x200, 300x300, 400x200, 400x400 and 600x400
Technical Spec
Display Size:  Suitable for 55” to 85”
Gross Dimension:  590mm x 290mm x 460mm
Gross Weight:  28.7 kg
Arm Swivel:  180 degrees
Tilt Angle:  -5 / +8 degrees
Distance from Wall:  60 - 500mm
Load Capacity:  68.2 kg
Cable Management:  Yes
Color:  Black
Download

UM_ AV515 _2025-03Mar-11_3.20pm.pdf

ds_ AV515 _2025-03mar-05.pdf

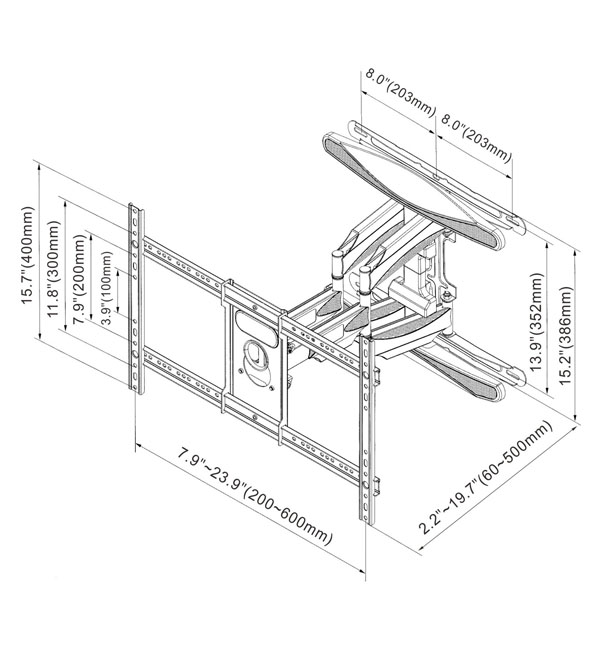

Diagram
