4:1 x 2 Multimedia with DVI Out

AVS-SCLHD402/AP3

product
The ABtUS AVS-SCLHD402/AP3 a Multimedia Presentation Full HD Scaler Switcher that provides high quality up or down scaling between standard computer and HDTV signals. Selectable inputs 2 x VGA/Audio OR 2 x YUV Component/Audio, YPbPr (Progressive Scan) Component/Audio (*with VGA break cable) as well as 2 x DVI-D or HDMI (*with gender changer) which then output with 2 x DVI/Audio.

Each incoming Video Signal/Audio gain and parameters can be adjusted independently.The high resolution DVI outputs are selectable as any computer resolution up to 1600 x 1200 or any HDTV resolution up to 1080p. All the functions can be controlled via the front panel Push Buttons and On-Screen Display is also available to assist in all setup. The Motion compensation and a 3:2 Pull-down features for NTSC greatly improve the image quality.
  • High quality up or down scaling between standard Computer and HDTV signals.
  • Logo Capturing (*base on VGA input)
  • PIP/Swap (*Picture in Picture with size, position and Blending adjustment)
  • POP/Swap (*Picture By Picture) • Max resolution computer 1600 x 1200 and HDTV 1080p
  • Independence inputs Video/Audio gain and parameter adjustments
  • Output includes: 2 x DVI-I/Audio
    SIGNAL TYPE CONNECTOR TYPE
INPUT : 2 x VGA/Audio
2 x DVI-D digital video or HDMI 1.3		 2 x D-Sub 15pin/3.5mm min jack
2 x DVI-I/3.5mm min jack
OUTPUT : 2 x DVI-I/Audio 2 x DVI-I/ 3.5mm min jack
CONTROL PORT : RS-232
VIDEO SUPPORT : 800x600, 1024x768, 1024x1024, 1280x960,
1280x1024, 1366x768, 1366x1024,
1600x1200, 576p, 720p, 1080i, 1080p 60Hz
AUDIO SUPPORT : Stereo Audio
PIP : Picture In Picture Yes
POP : Picture And Pict Yes
POWER SUPPLY : 12V DC, 3 Amp
OPERATION TEMPERATURE: : 0~40°C [32~104°F]
STORAGE TEMPERATURE: : -20~60°C [-4~140°F]
RELATIVE HUMIDITY: : 20%~90% RH [no condensation]
DIMENSION : 230 x 155 x 45 mm
WEIGHT : 1150g


AVS-SCLHD402/AP3
4:1 x 2 Multimedia with DVI Out
The ABtUS AVS-SCLHD402/AP3 a Multimedia Presentation Full HD Scaler Switcher that provides high quality up or down scaling between standard computer and HDTV signals. Selectable inputs 2 x VGA/Audio OR 2 x YUV Component/Audio, YPbPr (Progressive Scan) Component/Audio (*with VGA break cable) as well as 2 x DVI-D or HDMI (*with gender changer) which then output with 2 x DVI/Audio.

Each incoming Video Signal/Audio gain and parameters can be adjusted independently.The high resolution DVI outputs are selectable as any computer resolution up to 1600 x 1200 or any HDTV resolution up to 1080p. All the functions can be controlled via the front panel Push Buttons and On-Screen Display is also available to assist in all setup. The Motion compensation and a 3:2 Pull-down features for NTSC greatly improve the image quality.
Features
  • High quality up or down scaling between standard Computer and HDTV signals.
  • Logo Capturing (*base on VGA input)
  • PIP/Swap (*Picture in Picture with size, position and Blending adjustment)
  • POP/Swap (*Picture By Picture) • Max resolution computer 1600 x 1200 and HDTV 1080p
  • Independence inputs Video/Audio gain and parameter adjustments
  • Output includes: 2 x DVI-I/Audio
Technical Spec
    SIGNAL TYPE CONNECTOR TYPE
INPUT : 2 x VGA/Audio
2 x DVI-D digital video or HDMI 1.3		 2 x D-Sub 15pin/3.5mm min jack
2 x DVI-I/3.5mm min jack
OUTPUT : 2 x DVI-I/Audio 2 x DVI-I/ 3.5mm min jack
CONTROL PORT : RS-232
VIDEO SUPPORT : 800x600, 1024x768, 1024x1024, 1280x960,
1280x1024, 1366x768, 1366x1024,
1600x1200, 576p, 720p, 1080i, 1080p 60Hz
AUDIO SUPPORT : Stereo Audio
PIP : Picture In Picture Yes
POP : Picture And Pict Yes
POWER SUPPLY : 12V DC, 3 Amp
OPERATION TEMPERATURE: : 0~40°C [32~104°F]
STORAGE TEMPERATURE: : -20~60°C [-4~140°F]
RELATIVE HUMIDITY: : 20%~90% RH [no condensation]
DIMENSION : 230 x 155 x 45 mm
WEIGHT : 1150g
Download

UM_AVS-SCLHD402(AP3.pdf

ds_AVS-SCLHD402(AP3.pdf
Technical Specification

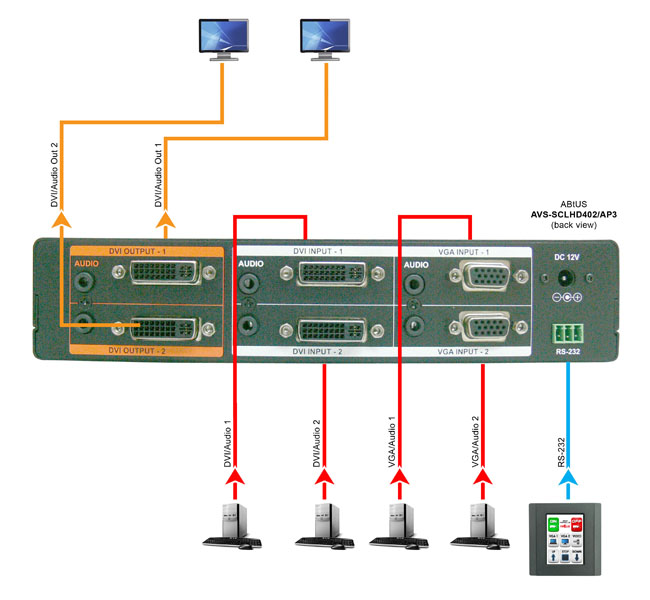

Diagram
