Dante Wall Plate with Bluetooth
DAN-WBT

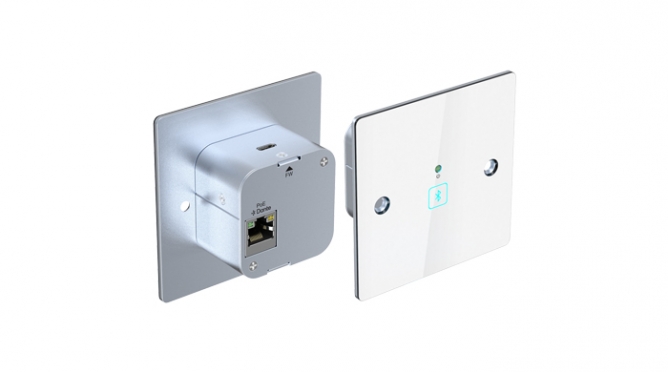

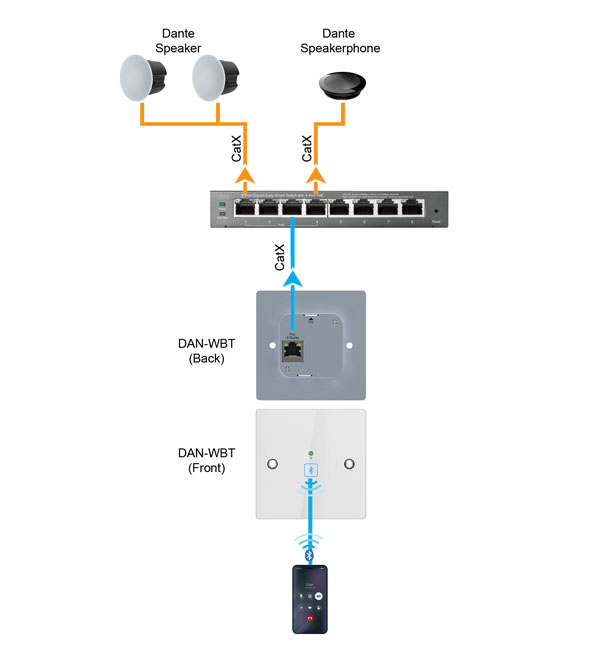

The DAN-WBT is audio wall plate. It receives signal from Bluetooth and converts them into Dante network data for output. One-touch pairing simplifies connection. The device is powered via PoE from the Ethernet switch. It also supports control via the Dante controller
● Class 2, communication distance at least 10m.
● Support one-touch pairing.
● Support PoE power supply from Ethernet switch.
● Controllable via Dante Controller
| Transmission | |
| Input | Bluetooth |
| Output | Dante |
| Audio | |
| Frequency Response | 20Hz-20kHz ±3dB |
| THD+N | <0.05% @1kHz |
| SNR | >105dB |
| Sample Rate | 44.1/48kHz |
| Bit Depth | 24bit |
| Protocol | A2DP/HFP/AES67 |
| General | |
| Power Supply | IEEE 802.3af (PoE) |
| Operation Temperature | -5°C ~ +55°C |
| Storage Temperature | -20°C ~ +70°C |
| Relative Humility | 10% ~ 90% |
| Dimension (W*H*D) | 86mm x 86mm x 34.5mm |
| Net Weight | 115g |
DS DAN-WBT 2026-06June-05.pdf
