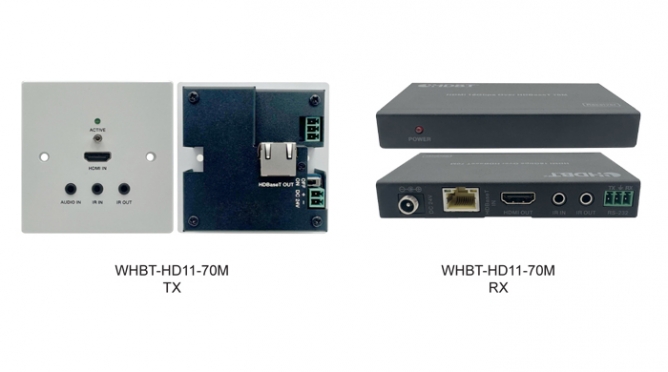

HDMI Wallplate HDBaseT Extender 70M
WHBT-HD11-70M

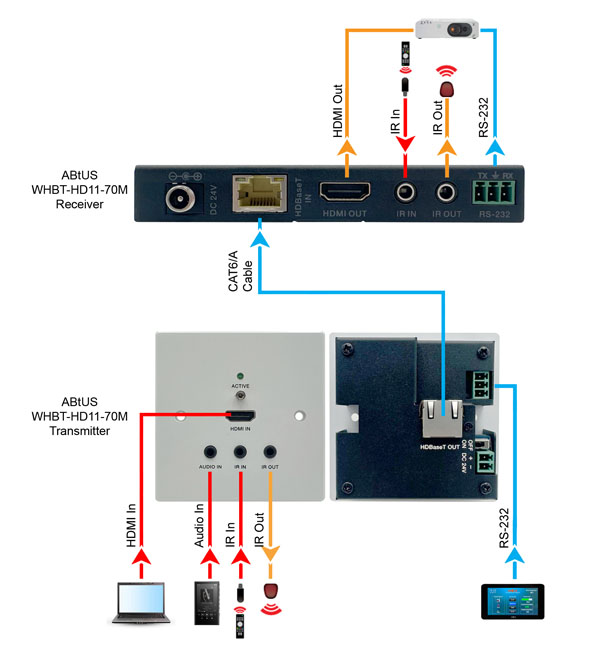

This HDMI Wall-plate supports one HDMI input and analog audio input within a standard 86mm×86mm wall box. The HDBaseT port over a single CAT6/6a cable can extend transmission distance up to 230ft / 70m for 1080P signal or 131ft / 40m for 4K signal. The video resolution is up to 4K@60Hz 4:4:4.
Transmitter supports audio embedding and receiver supports audio de-embedding.
The product supports two-way IR and RS-232 signal control, EDID management and POC function.
● HDMI 2.0b and HDCP 2.2 compliant
● Support video resolution up to 4K2K@60Hz (4:4:4), 18Gbps video bandwidth
● Transmission distance can be extended up to 230ft / 70m for 1080P signal or 131ft / 40m for 4K signal via a single CAT6/6a cable
● Transmitter supports audio embedding, Receiver supports audio de-embedding
● Support two-way IR and RS-232 control
● Standard 86mm×86mm wall box
● Built-in POC switches, when POC switches of TX turned on, the Extender supports bidirectional 24V POC function, either TX or RX can be
powered by 24V1A power supply.
| TX | RX | |
| Input: | 1 x HDMI [Type A, 19-pin female] | 1 x HDBT IN [RJ45] |
| 1 x Audio [3.5mm Stereo Mini-jack] | ||
| Output: | 1 x HDBT [RJ45] 1 x HDMI Out [Type A, 19-pin female] | |
| 1 x AUDIO Out [3.5mm Stereo Mini-jack] | ||
| Control: | 1 x RS-232 [3pin-3.5mm Phoenix connector] | 1 x RS-232 [3pin-3.5mm Phoenix connector] |
| 1 x IR In [3.5mm Stereo Mini-jack] | 1 x IR In [3.5mm Stereo Mini-jack] | |
| 1 x IR Out [3.5mm Stereo Mini-jack] | 1 x IR Out [3.5mm Stereo Mini-jack] | |
| 1 x Service [Micro USB] | 1 x Service [Micro USB] | |
| HDMI Compliance: | HDMI 2.0b | |
| HDCP Compliance: | HDCP 2.2 | |
| HDMI Video Bandwidth: | 18Gbps | |
| HDMI Video Resolution: | Up to 4K@60Hz 4:4:4 | |
| Color Space: | RGB, YCbCr 4:4:4 / 4:2:2, YCbCr 4:2:0 | |
| Color Depth: | 8/10/12bit | |
| HDR: | HDR, HDR10, HDR10+, Dolby Vision, HLG | |
| IR Level: | 5Vp-p | |
| IR Frequency: | Wideband 20K-60KHz | |
| Audio Format: | HDMI: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS | |
| High Res, DTS-HD Master Audio, DSD | ||
| Analog: PCM 2.0 | ||
| Transmission Distance: | 1080P--70m, 4K --40m (CAT6/6a) | |
| ESD Protection: | Human body model: ±8kV (Air-gap discharge) & ±4kV (Contact disc harge) | |
| Housing: | Aluminium Enclosure — Front Panel | Metal Enclosure |
| Metal Enclosure — Rear Panel | ||
| Power Supply: | Input: AC100 - 240V 50/60Hz, | |
| Output: | DC 24V/1A | |
| Power Consumption: | 9W | |
| Operating Temperature: | 32 - 104°F / 0 - 40°C | |
| Storage Temperature: | -4 - 140°F / -20 - 60°C | |
| Relative Humidity: | 20 - 90% RH (no condensation) | |
| Dimension(W*D*H): | 86mm x 38mm x 86mm | 115.5mm x 65.5mm x 17.3mm |
| Weight: | 185g | 202g |
