ECO Energy Saving AC/DC Power Sequencer with RS-232
PWR-DA06C
The ABtUS PWR-DA06C is a energy saving power sequencer that allows programmable sequencing delay (On/Off) through RS- 232. With it’s unique I/O that features both AC and DC outputs, it can achieve greater fl exibly and is suitable of practically any application. RS-485 and RS- 232 control are also integrated so that the power sequencer could control any external audio video equipment such as TV displays, projectos or audio system etc. Ideal for rack systems, digital signage and large venues av.
• Programmable sequencing delay ON/OFF through RS-232
• Integrated with RS-232 and RS-485 for external controls
• 6 DC outputs with 2 AC outputs
| : | Singal Type | Connector Type | |
| Input | : | 1 × AC in | D-Shape male |
| Output | : | 2 × AC Out 6 × DC Out |
D-Shape male 3.8mm Terminal Block |
| : | 1 × 485 3.8mm 1 × RS-232 3.8mm |
3pin Terminal Block 3pin Terminal Block |
|
| Output Power | : | ||
| DC output | : | 6 × 12V DC 5A max | |
| AC output | : | 240VAC 5A max each | |
| Dimension | : | 200 × 115 × 45 mm | |
| Weight | : | 1.2 kg |

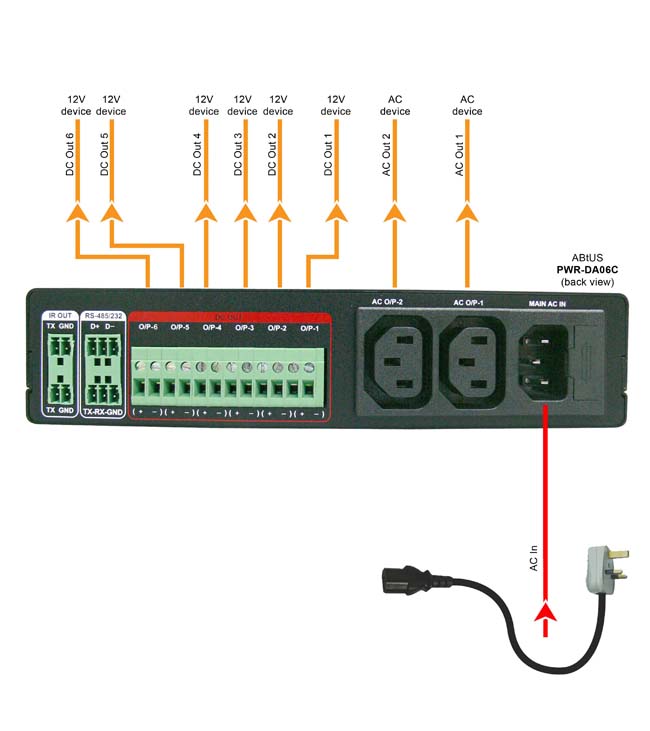

.jpg)
UM_PWR-DA06C_2020-12Dec-11.pdf
