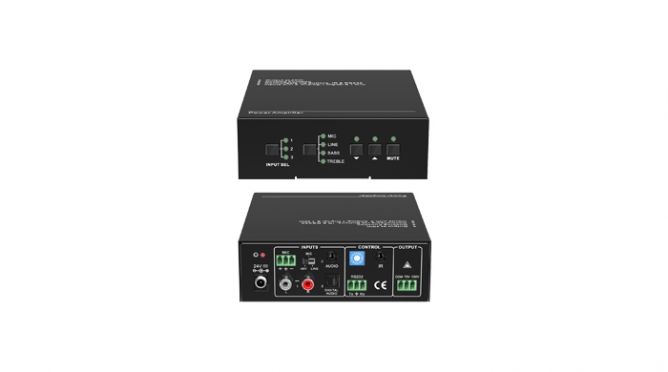

40W Digital Mixer Amplifier with 70V/100V
AMP-V40
The AMP-V40 is a 40W digital mixer amplifier (Class-D) with output alternatively at 70V or 100V. It has 2 stereo inputs (1x3.5mm jack for line in, 2xRCA for L&R), 1 digital input & 1 balanced MIC. It is integrated with powerful functions, including ducking function, EQ control, MIC mixer etc., and MIC input supports 3 levels with condenser MIC, dynamic MIC
& line audio input.
As for power amplifier we have normally voltages at 70V and 100V for different countries, but the amplifier is designed to integrate with both voltages to meet different requirements.
● Mono audio output at 40Watt.
● Switchable between 70V and 100V.
● Ducking function.
● 16 ID codes for controlling between different amplifiers.
● 3-level MIC input, supports condenser microphone, dynamic microphone and wireless microphone.
● MIC port can support balance/unbalance signal, suppress the external noise effectively.
● Two stereo audio inputs and one digital audio input, switchable by button, IR remote & RS232.
● Volume/Bass/Treble controllable by buttons, IR remote & RS232.
● Fast switching speed for good performance.
● Convection cooler, fan is not needed.
● LED indicator, for power and working status.
● Antistatic case design to provide good protection for long-term and stable performance.
| Audio Input | |
| Input | 2 x Stereo Audio |
| 1 x MIC | |
| 1 x Digital Fiber Audio | |
| Input Connector | 2 x RCA |
| 1 x 3.5mm Jack | |
| 1 x 3-pole 3.81mm Captive Screw Connector | |
| 1 x SPF Fiber Connector | |
| Input Impedance | >10KΩ |
| Audio Output | |
| Output | (1) Mono Amplifier |
| Output Connector | (1) 3-pole 3.81mm Captive Screw Connector |
| Output Type | Constant voltage 70V or 100V. |
| Audio General | |
| Frequency Response | 20Hz ~ 20KHz |
| CMRR | >70dB@20Hz~20KHz |
| SNR | 80dB (Max) |
| Rated Power Output | 40Watt |
| THD + Noise | 1%@1KHz, 0.3%@20KHz at nominal level |
| Voltage Gain | 26dB |
| Control Function | |
| RS232 Control | (1) 3-pole 3.81mm Captive Screw Connector |
| Front Panel Control | Buttons |
| ID Code Control | 16 ID Codes for control. |
| Optional | IR Remote |
| General | |
| Operation Temperature | 0°C ~ +40°C |
| Storage Temperature | -10°C ~ +60°C |
| Storage Humidity | 10%-90% |
| Power Supply | DC 24V 2.71A Power Adapter |
| Standby Power Consumption | 5W |
| Case Dimension | W130 x H44 x D144mm (1U high) |
| Product Weight | 860g |
